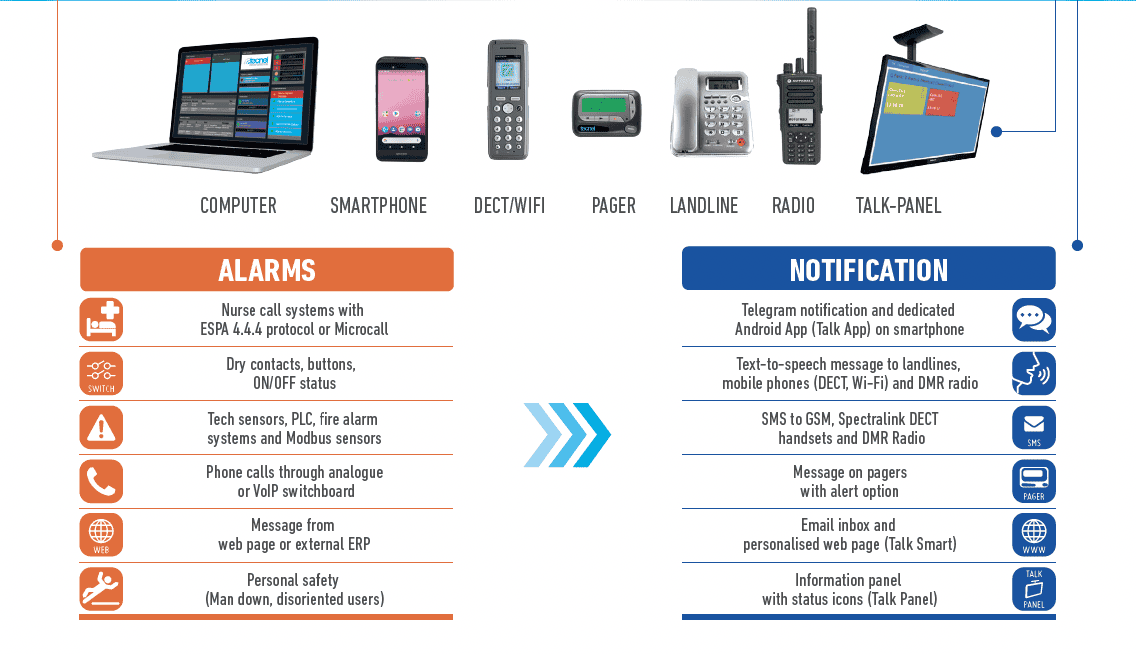

The INFORMO IP central unit is the core system that can process and send notifications about the events or alarms being monitored.

The device is equipped with two LAN/WAN network ports to connect to peripheral units for data collection and reporting.

Its native use of IP connectivity enables flexible, multi-location systems that can be integrated with the customer’s existing network.

The unit’s functions can be programmed, and its historical reports (such as alarms and message sending) can be consulted through a web browser, without the need for dedicated programming software.

Access to the system is secure (TLS RSA AES encrypted – 128 bit) and can only be done with credentials assigned to “supervisor” users. Specific user profiles can also be created to restrict access to sensitive information (e.g., alarm/send reports).

Modular licensing of Informo IP is managed by UC-IP through a USB hardware key that must always be connected.

Features and Advantages:

• 19” 1U extruded aluminum RACK
• Fanless technology: no fan, maximum quietness
• Up to 400 users
• Built-in RS232-485 serial port
• Advanced event history management (Reports)
• Management of staff shifts (Daily/Weekly/Seasonal)
• Secure configuration web access (TLS RSA AES – 128 bit)
• Database backup and restore functions
• Message transposition function
• Long-term datalogger function (ModBus)
• Telephone voice interface through customizable I.V.R.
• System anomaly notification (self-analysis) via e-mail and TRAP SNMP
• Advanced UPS management via serial port
• Online user manual
• Compatible with previous generations (1.0, 2.0)

Technical Characteristics:
